Ref : 61495

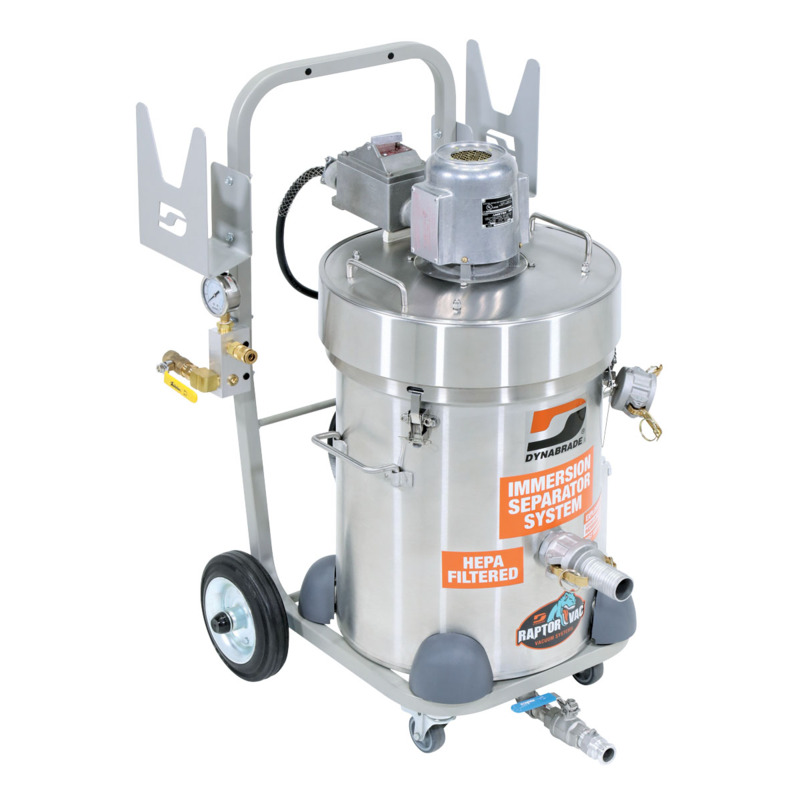

Compact Electric Water Immersion Vac System, Division 1

with Hose

Share
Certifications : C_SA_US_Icon_Black.pngHEPA_Flter_Icon_Black.pngCE_Icon_Black.pngATEX_Icon_Black.png

  • Electric Portable Vacuum with Division 1 Immersion for safe recovery of metallic dusts such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 3 lbs. (1.36 kg) of dust. Legally certified as explosion-proof and dust ignition-proof. Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil. Renders hazardous dusts inert. Recovery capacity of 3 lbs (1.36 kg) of dust into 7.5 gallons (28.40 ...

  • Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide casters. Single operator connection. Dynabrade recommends the use of mineral oil with viscosity of 10.5 cSt.

  • Designed For Use In: Class I, Division I, Group D T3C Class II, Division I, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NFPA 70)

  • European Certifications: ATEX, Third Party Certified CE EX II 2 GD Ex d IIA T3 Gb Ex t IIIC T 200° C Db IP 6x

  • Vacuum for use in: Group D: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode Group E: atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys Group F: atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust Group G: atmospheres, containing wood and plastic dusts

  • Included: o One 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines o One composite coupler o One vacuum hose swivel o Conductive recovery bag o HEPA H14 Filter with 99.995% efficiency on0.3 micron

Sound Power dB[A]
75/85
Height (in)
36 in
Height (mm)
914 mm
Length (in)
34 in
Length (mm)
864 mm
Weight (kg)
34 kg
Width (in)
24 in
Width (mm)
610 mm
Amps [A]
12
Frequency [Hz]
60
Voltage
120
Capacity [gal]
1
Water Static Lift
69" / 175 cm / 172 mbar
Current Manual (Parts Page) 61495
