Ref : 61496

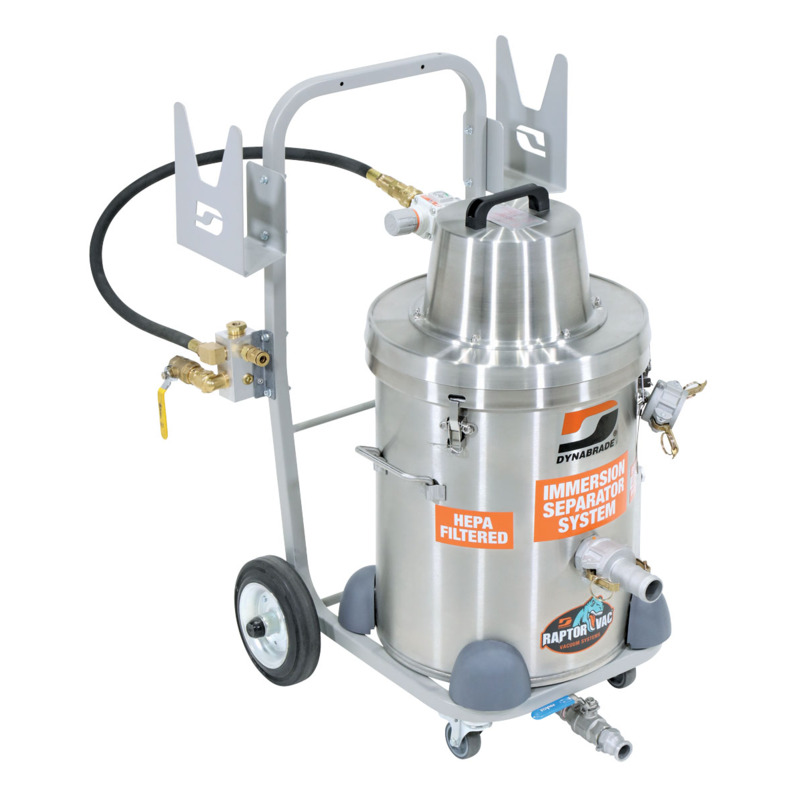

Compact Pneumatic Water Immersion Vac System, Division 1

with Hose

Share
Certifications : HEPA_Flter_Icon_Black.pngATEX_Icon_Black.pngCE_Icon_Black.png

  • Pneumatic Portable Vacuum with Division 1 Immersion for safe recovery of metallic dusts such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 3 lbs. (1.36 kg) of dust. Legally certified as explosion-proof and dust ignition-proof. Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil. Renders hazardous dusts inert. Recovery capacity of 3 lbs (1.36 kg) of dust into 7.5 gallons (28.40...

  • Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide casters. Single operator connection. Dynabrade recommends the use of mineral oil with viscosity of 10.5 cSt.

  • Designed For Use In: Class I, Division I, Groups A, B, C, D T6 Class II, Division I, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NFPA 70) European Certifications: ATEX, Third Party Certified, CE EX II 2 GD c IIC T6 (85° C)

  • Vacuum for use in: Group A: atmospheres, containing acetylene Group B: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air Group C: atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air Group D: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode Group E: atm...

  • Included: o One 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines o One composite coupler o One vacuum hose swivel o Conductive recovery bag o HEPA H14 Filter with 99.995% efficiency on0.3 micron

Accy. Max. Air Flow SCFM (LPM)
35-45 (1,274)
Sound Power dB[A]
68
Height (in)
34 in
Height (mm)
864 mm
Length (in)
19 in
Length (mm)
483 mm
Weight (kg)
34 kg
Width (in)
18 in
Width (mm)
457 mm
Air Pressure [PSIG]
90
Capacity [gal]
1
Water Static Lift
110" / 280 cm / 274 mbar
Current Manual (Parts Page) 61496
