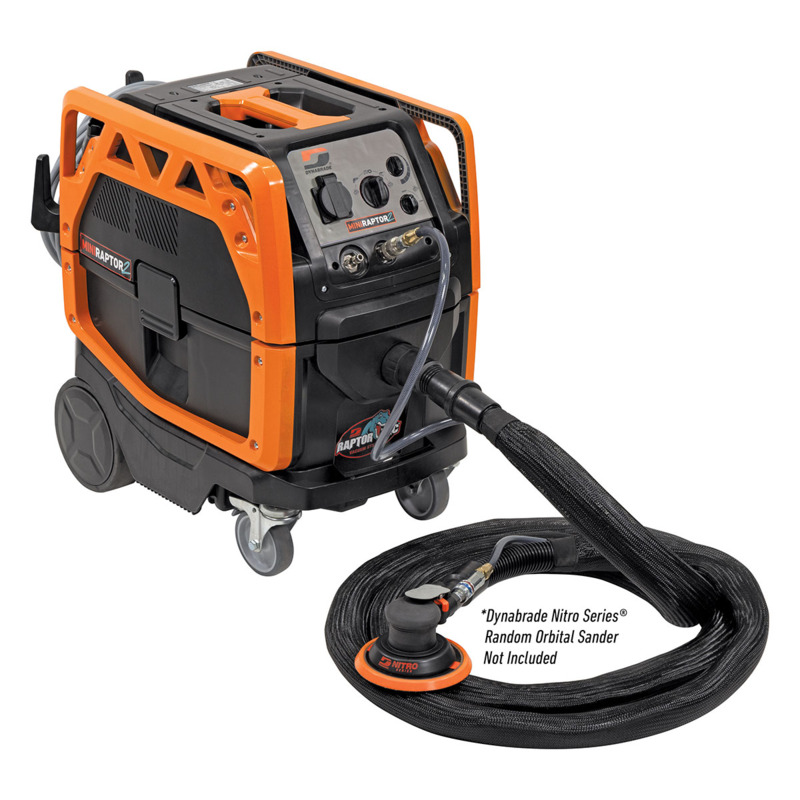

Mini-Raptor 2 M-Class Vacuum, 120V/60Hz, NEMA 5-15, 10 gal (41 L)
Includes Vacuum & 4m Vac Hose w/Integrated Airline, Rated IPX4, 1350 Watts
-
The Mini-Raptor 2 Vacuum features a high performance 1350 Watt electric motor, which produces a high-collection airflow of 161 CFM. This also accounts for 100" of static water lift. This 10 Gallon (41 L) capacity system allows for easy access filter and bag change-out.
-
The M-Class rated system, which allows for Wet/Dry collection supports general purpose clean-up with hose/wand/accessories or hose assembly with integrated airline for support of pneumatic tools. The static-conductive hose assembly in both instances reduces the opportunity for static charge to reach the operator.
-
Includes 1-1/4 dia. X 13 (32 mm X 4M) ergonomic vacuum hose assembly with integrated airline.
-
Compact shop friendly system easy to maneuver. It features large rigid rear wheels and front locking swivel casters. Auto filter clean without interrupting operation. Supports electric and pneumatic power tools. Single operator only. HEPA Filter replacement option available.
-
Auto On-Off. Tool On - Vacuum On, Tool Off - Vacuum Off. Adjustable Mar-free over-hose adapts to operator’s needs. Flexible cut to fit airline/reusable fittings. Operating hose diameter settings.
| Watts |
1350 W
|
|---|
| Hose I.D. |
|---|
| Height (in) |
24 in
|
|---|
| Height (mm) |
610 mm
|
|---|
| Length (in) |
27 in
|
|---|
| Length (mm) |
680 mm
|
|---|
| Weight (lb) |
46.3 lb
|
|---|
| Weight (kg) |
21 kg
|
|---|
| Width (in) |
15 in
|
|---|
| Width (mm) |
381 mm
|
|---|
| Air Pressure [PSIG] |
|---|
| Amps [A] |
|---|
| Frequency [Hz] |
|---|
| Voltage |
120
|
|---|
| Motor [Electric] Phase |
|---|
| Capacity [gal] |
10
|
|---|
| Water Static Lift |
100 in.
|
|---|
