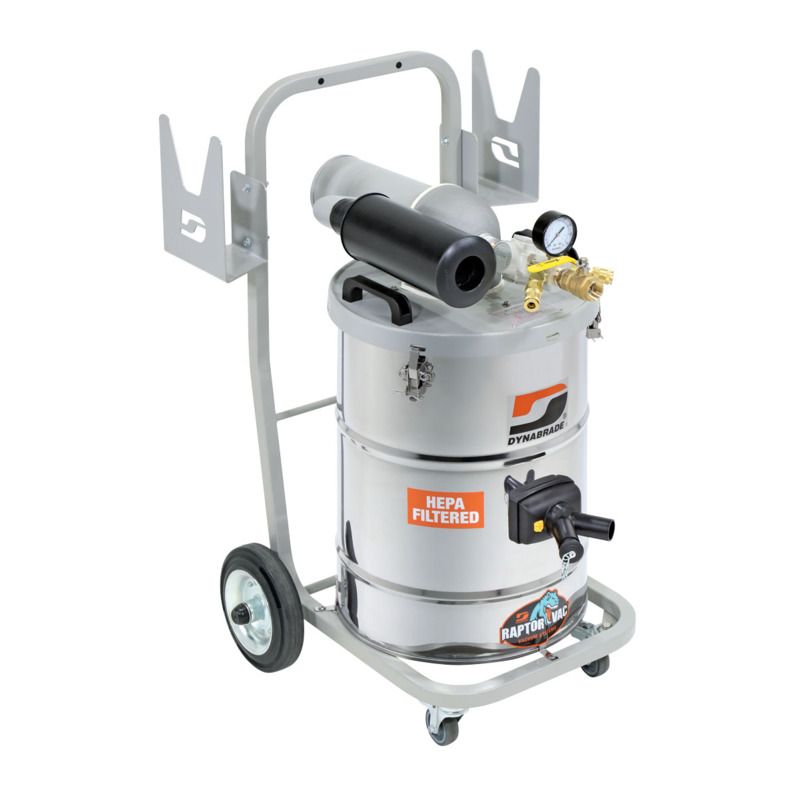

Raptor Vac Air Powered Portable Vacuum System
10 Gal. (38 L), Division II, North America/South America
-
Pneumatic Portable Vacuum for use on non-metallic surfaces such as wood, plastics. Powerful suction is ideal for dry-only, industrial applications, Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron.
-
Two additional HEPA Filters included within power-head,making it eligible for IP6X. Top-quality stainless steel body and 10 gallon (38 liter) recovery tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart. Also connects to optional 61483 Cart.
-
Designed For Use In:<br> Class I, Division 2, Groups A,B,C and D T6<br> Class II, Division 2, Groups F and G<br> Hazardous Locations as defined in the National Electric Code (NFPA 70)<br> European Certifications: ATEX, CE EX II 3 GD, c IIC T6 (85 Degree; C)<br> Group F (atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust)<br> Group G (atmospheres, containing wood and plastic dusts)<br>
-
Not included Optional Conductive Cleaning Kit (96607); Vacuum Hose, 10 ft. (3 m) length, Curved handle with extension, Round brush, Crevice tool, Small & large coarse nozzle.
-
Included: Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines, ?Y? Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, Disposable Collection Bag and a Conductive Poly Liner.
| Accy. Max. Air Flow SCFM (LPM) |
45 SCFM (1,274 LPM)
|
|---|
| Sound Power dB[A] |
80
|
|---|
| Height (in) |
39 in
|
|---|
| Height (mm) |
991 mm
|
|---|
| Length (in) |
27 in
|
|---|
| Length (mm) |
686 mm
|
|---|
| Weight (lb) |
102 lb
|
|---|
| Weight (kg) |
46.27 kg
|
|---|
| Width (in) |
20 in
|
|---|
| Width (mm) |
508 mm
|
|---|
| Air Pressure [PSIG] |
|---|
| Capacity [gal] |
10
|
|---|
| Water Static Lift |
170" / 432 cm / 423 mbar
|
|---|
