Ref : 61465

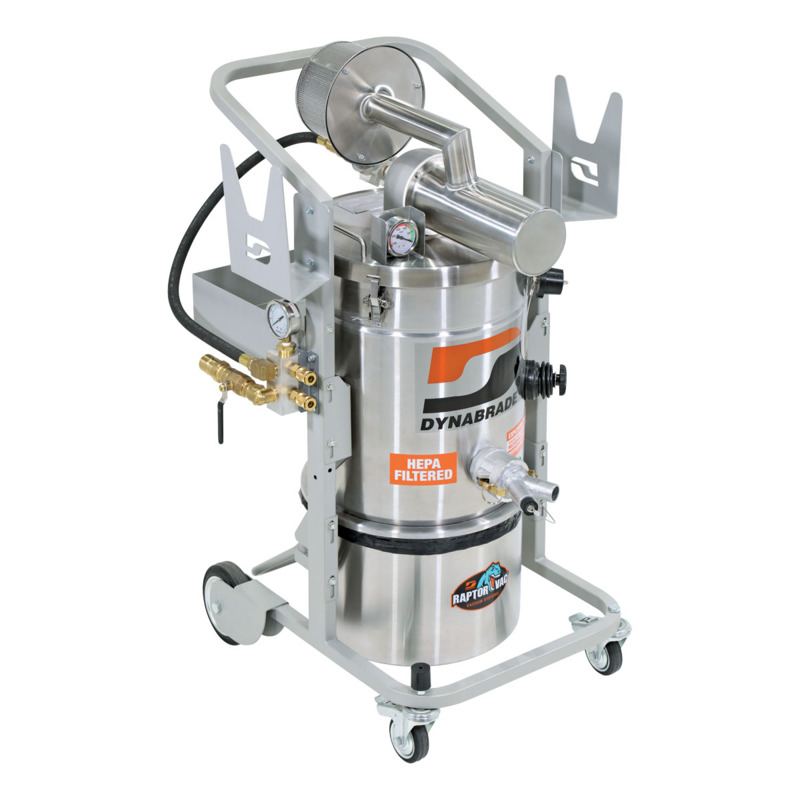

Raptor Vac Air Powered Portable Vacuum System

5 lbs. (2.27 kg) into 6.25 Gal (24 L), Division 1, N. America

Share
Certifications : CE_Icon_Black.pngHEPA_Flter_Icon_Black.pngATEX_Icon_Black.png

  • Pneumatic Portable Vacuum For use with collecting metallic dusts such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor. Manual Filter Shaker (MFS) system.

  • Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cSt. 96608 Conductive Cleaning Kit available separately

  • Designed For Use In: Class I, Division I, Groups A, B, C, D T6 Class II, Division I, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NFPA 70) European Certifications: ATEX, Third Party Certified, CE EX II 2 GD c IIC T6 (85° C)

  • Vacuum for use in: Group A: atmospheres, containing acetylene Group B: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air Group C: atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air Group D: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode Group E: atm...

  • Included: Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines; Y-Connector; Two Composite Couplers; Two Vacuum Hose Swivel Adapters; Conductive Poly Liner; 3/4" x 25' (19 mm x 7.6 m) Conductive Air Line Supply, Tool/Hose storage

Accy. Max. Air Flow SCFM (LPM)
45 SCFM (1,274 LPM)
Sound Power dB[A]
80
Height (in)
48 in
Height (mm)
1219 mm
Length (in)
20 in
Length (mm)
508 mm
Weight (lb)
168 lb
Weight (kg)
76.2 kg
Width (in)
22 in
Width (mm)
559 mm
Air Pressure [PSIG]
90
Capacity [gal]
6.25
Water Static Lift
180" / 457 cm / 448 mbar
Current Manual (Parts Page) 61465
