Ref : 61401

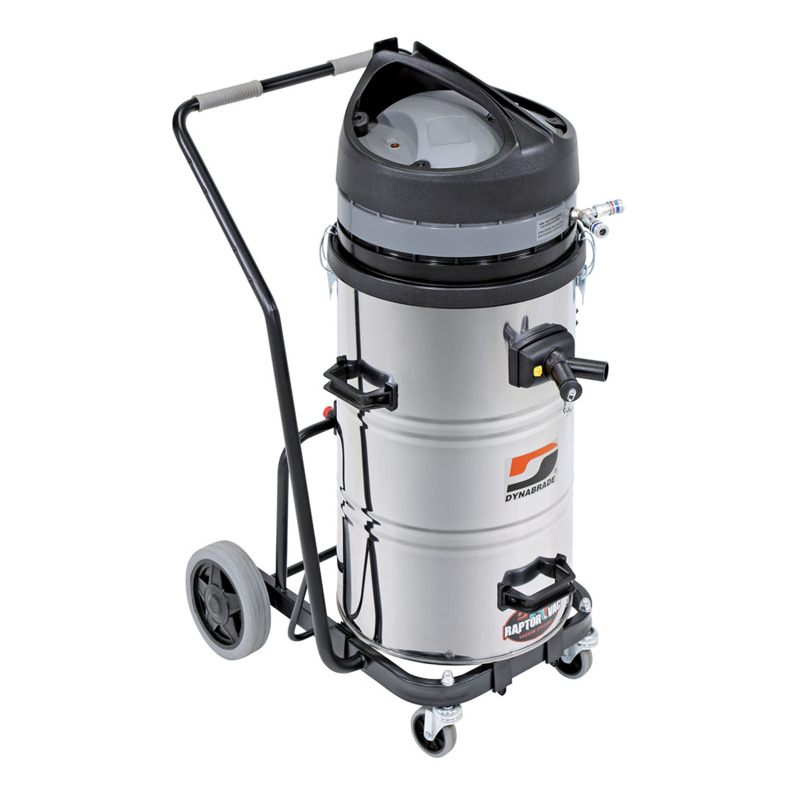

Raptor Vac Electric Portable Vacuum System

20 Gallon (78 L), 20 A, 120V/60 Hz, M-Class, Stainless Steel-Conductive, Dry Only, N. America

Share
Certifications : HEPA_Flter_Icon_Black.pngM_Class_Icon_Black.pngC_UL_US_LISTED_Icon_Black.png

  • Designed for general source capture and dry cleanup. 7.8' (238 cm) water static lift; 125 CFM (3,3521 L/Min) vacuum flow. Allows operation of two tools simultaneously. Vacuum starts automatically with startup of tool. Bypass Motor System uses environmental air to cool the motor and extend vacuum life. Heavy-duty stainless steel recovery tank, with 20 gallon (78 liter) capacity for clean filter assurance. This size allows filter to remain at substantial distance from collected debris, reducing...

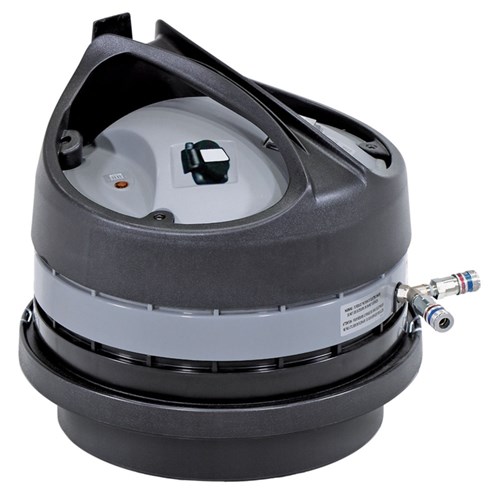

  • Includes a HEPA H13 Filter with 99.95 % efficiency on 0.3 micron. Automatic cleaning of filter. By connecting vacuum unit to external air supply, a blast of air is released to filter every 40 seconds of operation, to cyclically clean filter. Handy electric outlet on motor head allows for additional versatility in workplace. Convenient orange warning light indicates that filter needs replacement. Red warning light indicates protection device has been activated to prevent heat overload to motor...

  • USA & Canada Certifications: UL Listed, M-Class. <br>European Certifications: CE, EAC, M-Class.

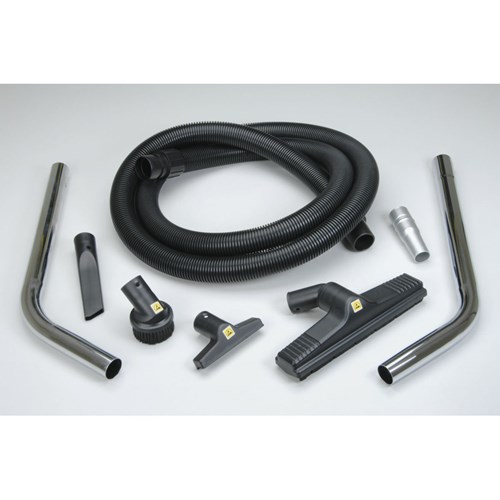

  • Not included optional Cleaning Kit (96558): Vacuum Hose, 6' (1.8 m) length, Curved handle with two extensions, Round brush, Crevice Tool, Coarse nozzle attachment.

  • Included: Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines, ?Y? Connector, Two Composite Couplers, Vacuum Hose Swivel Cuff, Two Disposable Collection Bags (96623)

Sound Power dB[A]
73
Height (in)
48 in
Height (mm)
1219 mm
Length (in)
18 in
Length (mm)
457 mm
Weight (lb)
85 lb
Weight (kg)
38.56 kg
Width (in)
27 in
Width (mm)
686 mm
Amps [A]
20
Frequency [Hz]
60
Voltage
120
Capacity [gal]
20
Water Static Lift
94” / 238 cm / 234 mbar
Current Manual (Parts Page) 61401
