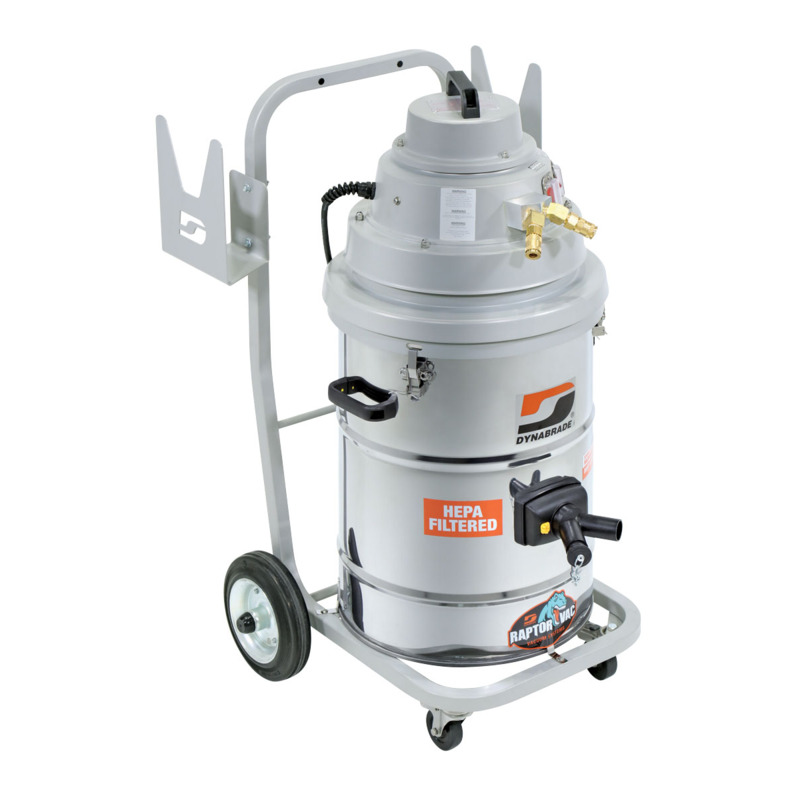

Raptor Vac Electric Portable Vacuum System

10 Gal. (38 L), 20 A, 120 V/60 Hz, Division II, N. America

Share
Certifications : HEPA_Flter_Icon_Black.pngC_SA_US_Icon_Black.png

  • Electric Portable Vacuum for use on non-metallic surfaces such as wood and plastics. Designed for general source capture and cleanup. Powerful suction is ideal for dry-only industrial applications. Bypass Motor System uses clean air to cool the motor and extend vacuum life. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Two additional HEPA Filters included within power-head, making it eligible for IP6X.

  • Top-quality stainless steel body and 10 gallon (38 liter) recovery tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart. Also connects to optional 61483 Cart. Dust Ignition Protected

  • CSA Group Certifications: North America<br> <br> Designed For Use In: Class II, Division 2,<br> Group F (atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust)<br> Group G (atmospheres, containing wood and plastic dusts)<br> <br> European Certifications: ATEX Third Party Certified, CE EX II 1/3 D, Ex tc IIIC T200° C Dc IP6X c T3

  • Not included Optional Conductive Cleaning Kit (96607); Vacuum Hose, 10 ft. (3 m) length, Curved handle with extension, Round brush, Crevice tool, Small & large coarse nozzle.

  • Included: Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines, ?Y? Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, Disposable Collection Bag and a Conductive Poly Liner.

hp
1200 hp
Watts
894840 W
Sound Power dB[A]
68
Height (in)
39 in
Height (mm)
991 mm
Length (in)
27 in
Length (mm)
686 mm
Weight (lb)
122 lb
Weight (kg)
55.34 kg
Width (in)
20 in
Width (mm)
508 mm
Air Pressure [PSIG]
90
Amps [A]
20
Frequency [Hz]
60
Voltage
120
Capacity [gal]
10
Water Static Lift
107" / 272 cm / / 267 mbar
Current Manual (Parts Page) 61430
