Ref : 61470

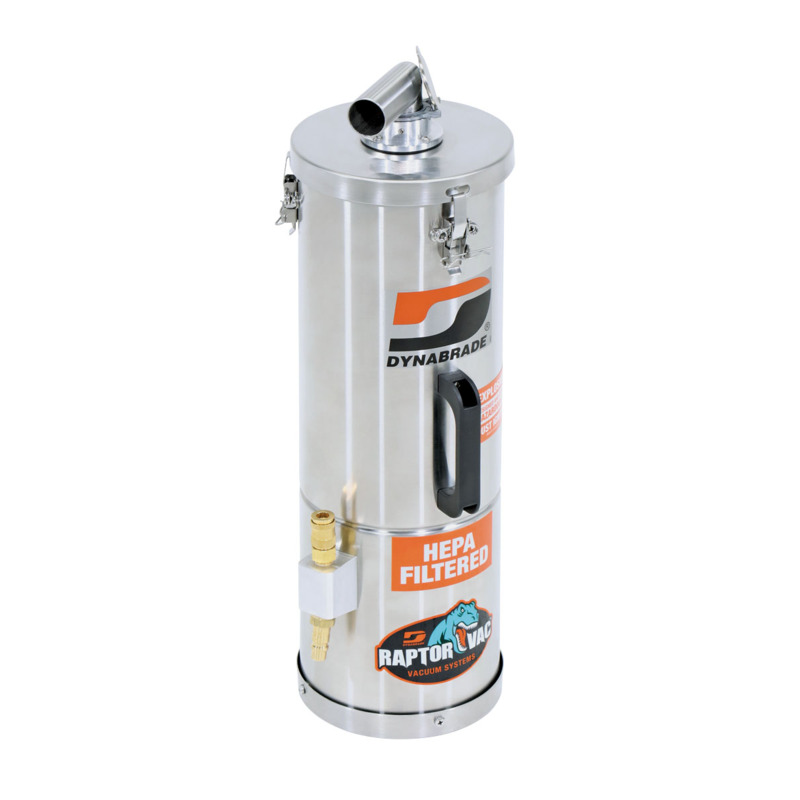

Raptor Vac Pneumatic Vacuum - Wall-Mount Style

1.5 Gal. (6 L), Division 1, Stainless Steel, Conductive, N. America

Share
Certifications : HEPA_Flter_Icon_Black.pngCE_Icon_Black.pngATEX_Icon_Black.png

  • Pneumatic Portable Vacuum For use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron.

  • Stainless steel recovery tank (SAE 304). Easy recovery bag access. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Wall mount Hardware Included. Conductive Cleaning Kit available separately

  • Designed For Use In: Class I, Division I, Groups A, B, C, D T6 Class II, Division I, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NFPA 70) European Certifications: ATEX, Third Party Certified, CE EX II 2 GD c IIC T6 (85° C)

  • Vacuum for use in: Group A: atmospheres, containing acetylene Group B: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air Group C: atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air Group D: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode Group E: atm...

  • Included: o One 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines o One composite coupler o One vacuum hose swivel o Conductive recovery bag o HEPA H14 Filter with 99.995% efficiency on0.3 micron o Wall Mounting Hardware

Accy. Max. Air Flow SCFM (LPM)
35 SCFM (991 LPM)
Sound Power dB[A]
68
Height (in)
16 in
Height (mm)
406 mm
Length (in)
30 in
Length (mm)
762 mm
Weight (lb)
28 lb
Weight (kg)
12.7 kg
Width (in)
18 in
Width (mm)
457 mm
Air Pressure [PSIG]
90
Capacity [gal]
1.5
Water Static Lift
80" / 203 cm / 199 mbar
Current Manual (Parts Page) 61470
