Ref : 61200

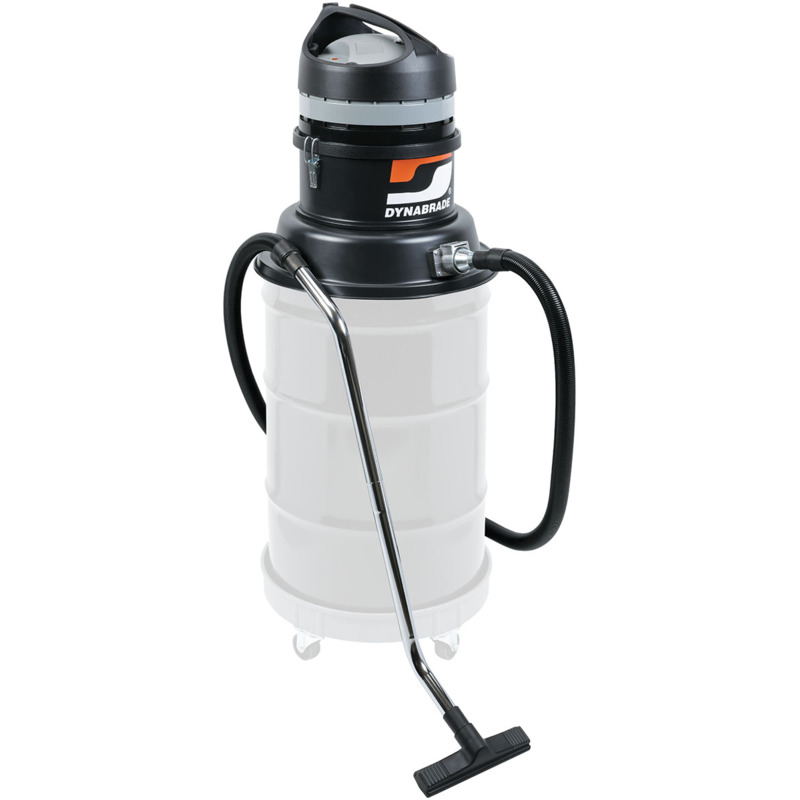

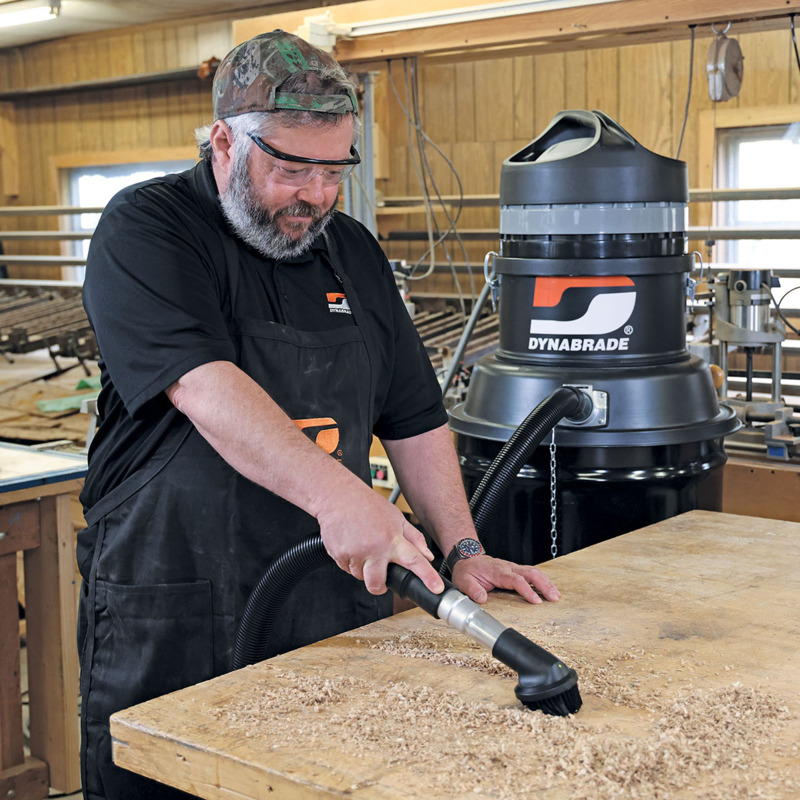

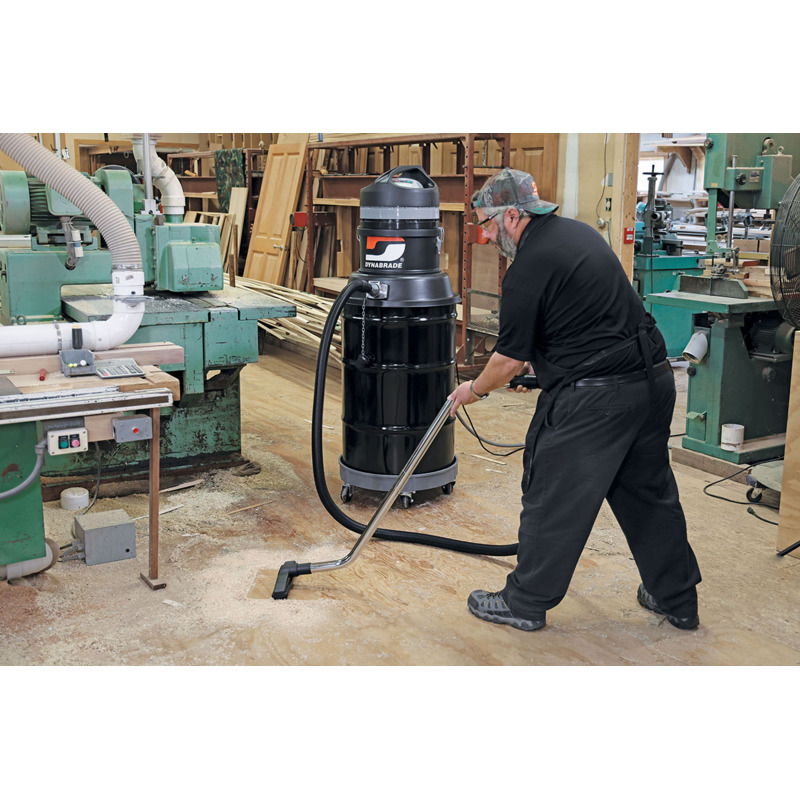

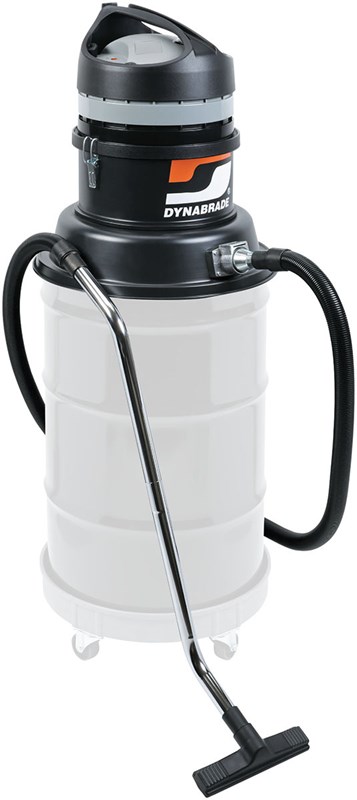

RaptorVac Electric DrumVac Kit, Single Operator, General Purpose

For 55 Gallon (208 L) Drum-Wheel Base Sold Separately, 120V, Dry Dust

Share
Certifications : UKCA CE_Icon_Black.png EAC

  • Dynabrade’s family of DrumVac Kits are a multi-industry clean air solution with fully integrated features designed to keep an operator working without being concerned with the arduous task of changing out a vacuum bag in high collection scenarios. Used in conjunction with a 55-gallon drum (sold separately), this system lends itself to one of the largest capacity portable dust collection systems in the industry.

  • 55 Gallon drum equates to large collection capacity. No bag change-out requirements. Anti-Static clean up kit eliminates static discharge to operator.

  • Bypass motor utilizes clean air to cool and extend motor life. Overload protection powers down vacuum prior to motor failure from overheating. Self-cleaning HEPA filtration provides a burst of clean air through filter, promoting proper airflow for power-head. performance and extended filter life. Selected single operator mode. Integrated auto on/off when using system with tools.

  • Material Collect Dry Dust Types: Wood, Fiberglass, Solid surface, Composites. Please consult factory for additional qualified materials.

  • What’s In The Box: Complete Kit with Vacuum Powerhead, filter, interface ring and supporting general purpose cleaning kit. Collateral technical & safety documentation.

Motor Type
Height (in)
27 in
Height (mm)
673 mm
Length (in)
25 in
Length (mm)
635 mm
Weight (lb)
44.25 lb
Weight (kg)
20.07 kg
Width (in)
25 in
Width (mm)
635 mm
Amps [A]
15
Frequency [Hz]
60
Voltage
120
Motor [Electric] Phase
1
Micron
0.3
Capacity [gal]
55
Water Static Lift
94 in.
Current Manual (Parts Page) PD22-12
